4 Buildings of Bamboo Structure Complex at Dongnayu, Guangxi
| Item | Details |
|---|---|
| Project Name | Dongnayu Bamboo Structure Complex, Guangxi |
| Completion Time | September 2023 |
| Shop | Diameter 80-100mm preservative-treated bamboo poles with special anti-mold wood oil. Roof: artificial thatch covering, SBS waterproof membrane, 9mm plywood, decorative ceiling with premium reed curtains. Area:159.81㎡ |
| Rest Pavilion 1 | Diameter 80-100mm preservative-treated bamboo poles with special anti-mold wood oil. Roof: artificial thatch covering, SBS waterproof membrane, 9mm plywood, decorative ceiling with premium reed curtains. Area:31.86㎡ |
| Rest Pavilion 2 | Diameter 80-100mm preservative-treated bamboo poles with special anti-mold wood oil. Roof: artificial thatch covering, SBS waterproof membrane, 9mm plywood, decorative ceiling with premium reed curtains. Area:44.45㎡ |
| Tea House | Diameter 80-100mm preservative-treated bamboo poles with special anti-mold wood oil. Roof: artificial thatch covering, SBS waterproof membrane, 9mm plywood, decorative ceiling with premium reed curtains. Area:48.43㎡ |
Located in Dongnayu, Guangxi, this bamboo complex includes one shop, two rest pavilions and one tea house, finished in September 2023. All structures adopt 80–100mm diameter treated bamboo poles as the main framework. Each bamboo pole is preservative-treated and coated with bamboo-specific anti-mold wood oil for outdoor durability.
The roof assembly combines 9mm plywood substrate, SBS waterproof membrane and artificial thatch roofing, with elegant reed curtain ceilings inside. The modular bamboo frame design balances natural aesthetics and practical weather resistance. This project delivers a cohesive eco-friendly commercial zone, ideal for resorts, scenic spots and cultural tourism destinations.

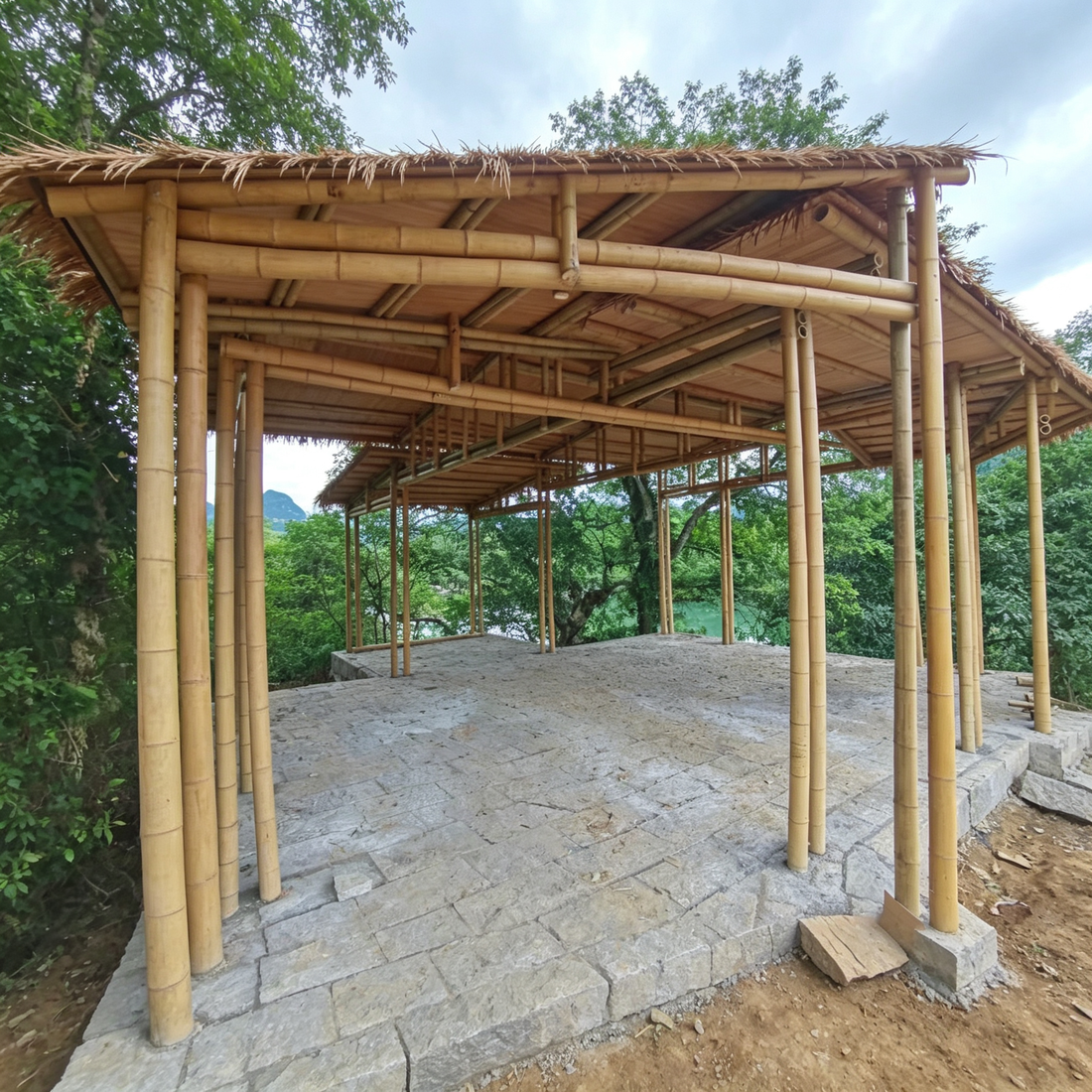

Finished Photo ：
Construction Drawing ：
Rendering ：
